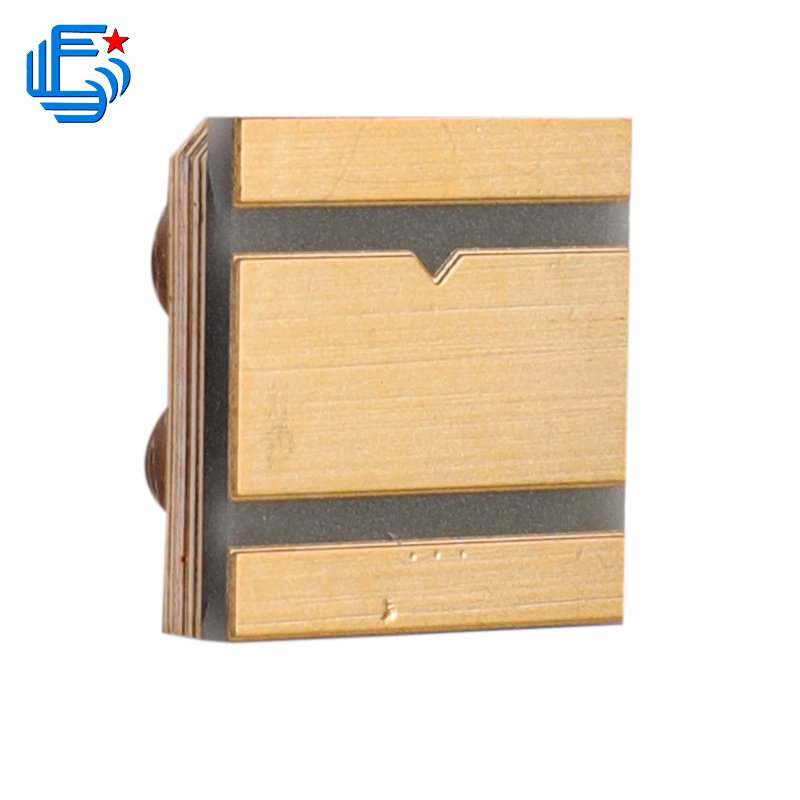

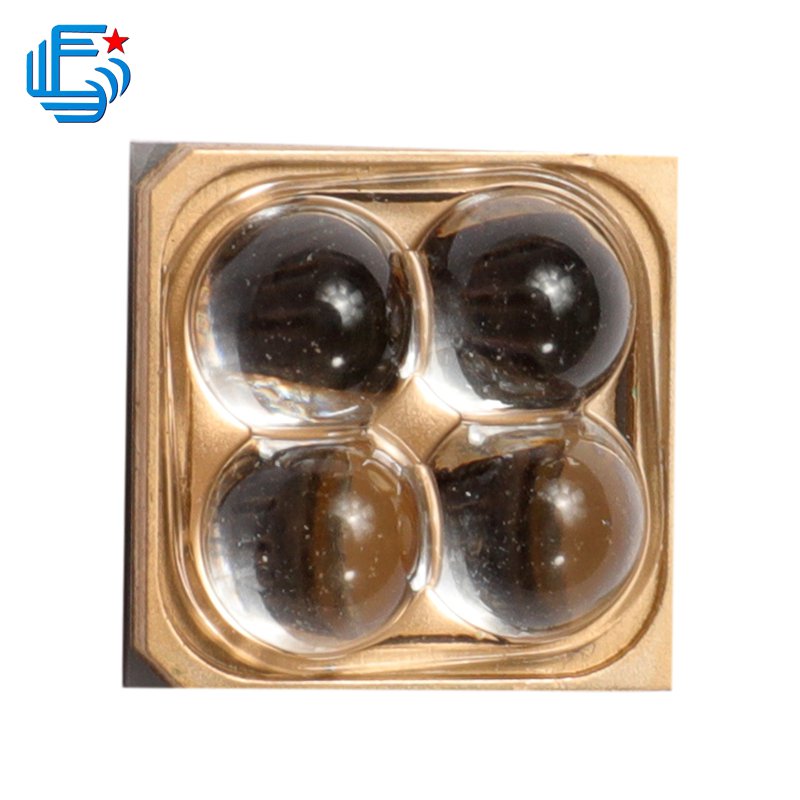

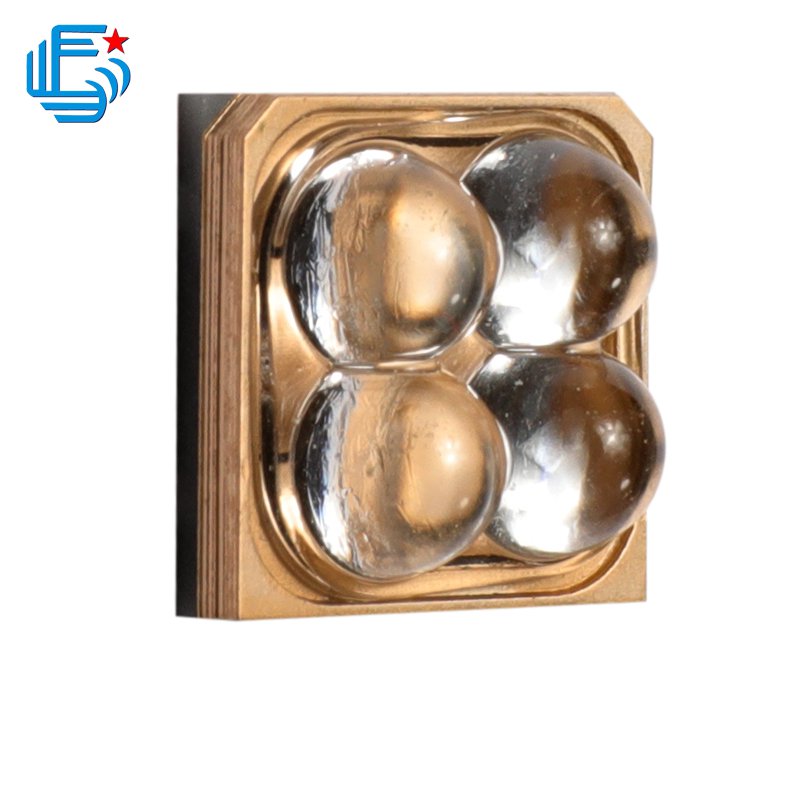

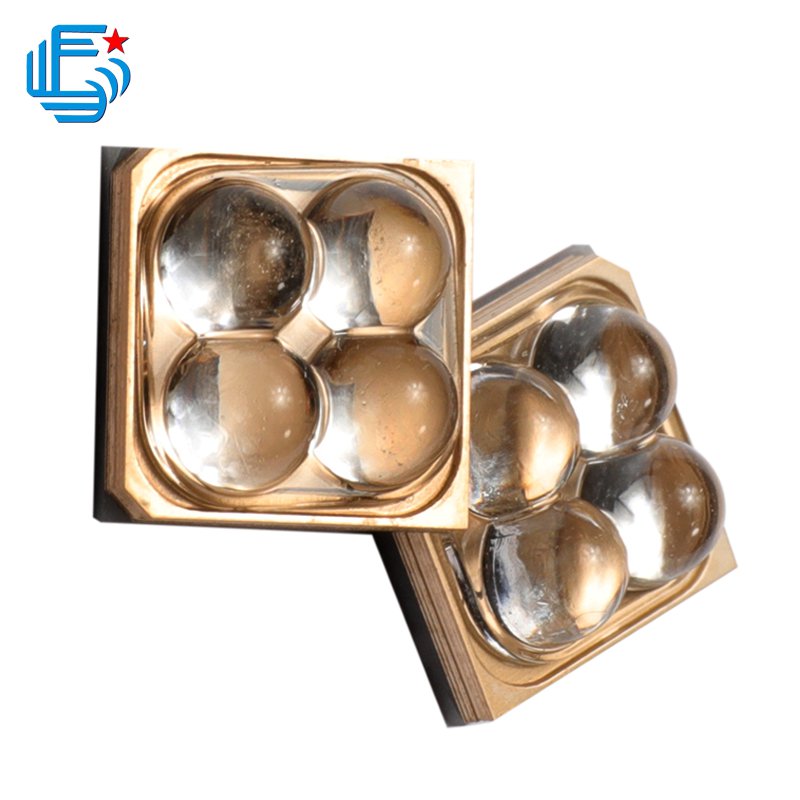

6565 High reliability, Ultra high optical power, Focus and kill efficiently 80~150 mW

The single device contains two kinds of chips, UVC and zener diode. Among them, zener diode plays an ESD protection role on UVC;

The front notch is negative, the back corner is negative, and the round hole end of the braided product is negative;

Drawing unit: mm

Package: 6565 package, external dimension: 6.5 × six point five × 3.4 (L × W × H) [unit: mm]

Packaging material: aluminum nitride ceramic bracket, connecting convex lens

Number of package chips: 4 pcs

Unless otherwise specified, the dimensional tolerance is ± 0.20 mm

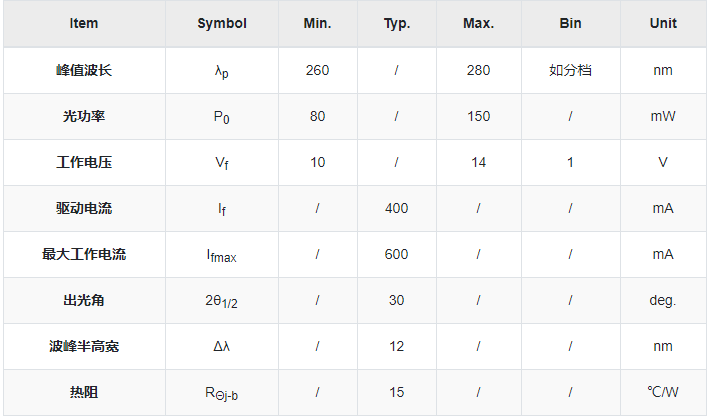

Photoelectric characteristic parameters

UVC photoelectric parameters and spec range (@ 400mA, Ta = 25 ℃, Rh = 30%)

These values are measured by a spectrum analyzer and an integrating sphere measurement system. The tolerances are as follows: working voltage (VF) ± 2％； Optical power (P0): 0 ± 10％； Peak wavelength（ λ p）： ± 3.0 nm

Although all LEDs are tested by our equipment, some values may be slightly different depending on the conditions of the test equipment.
