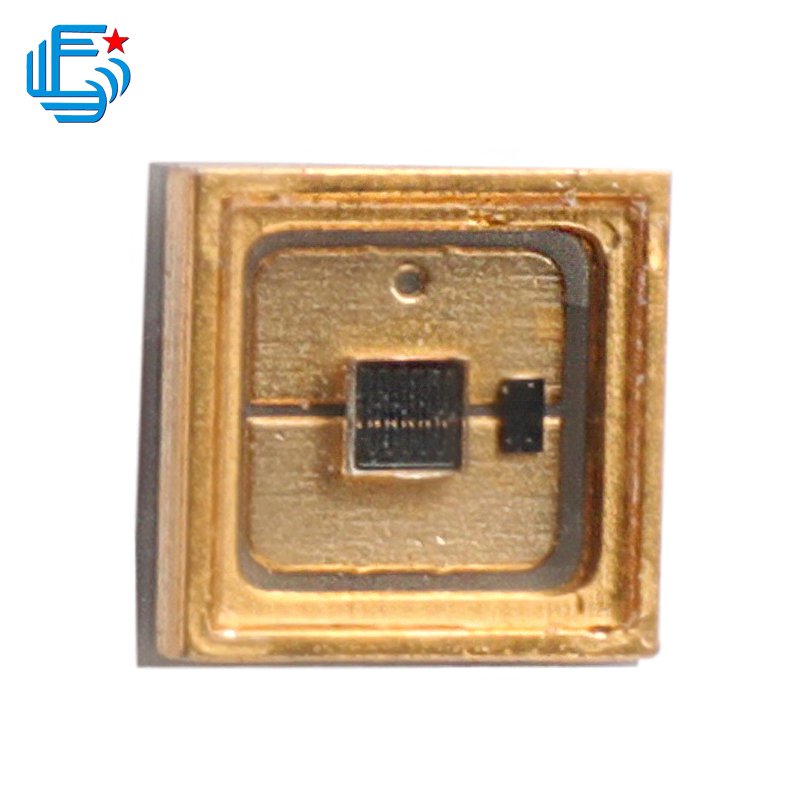

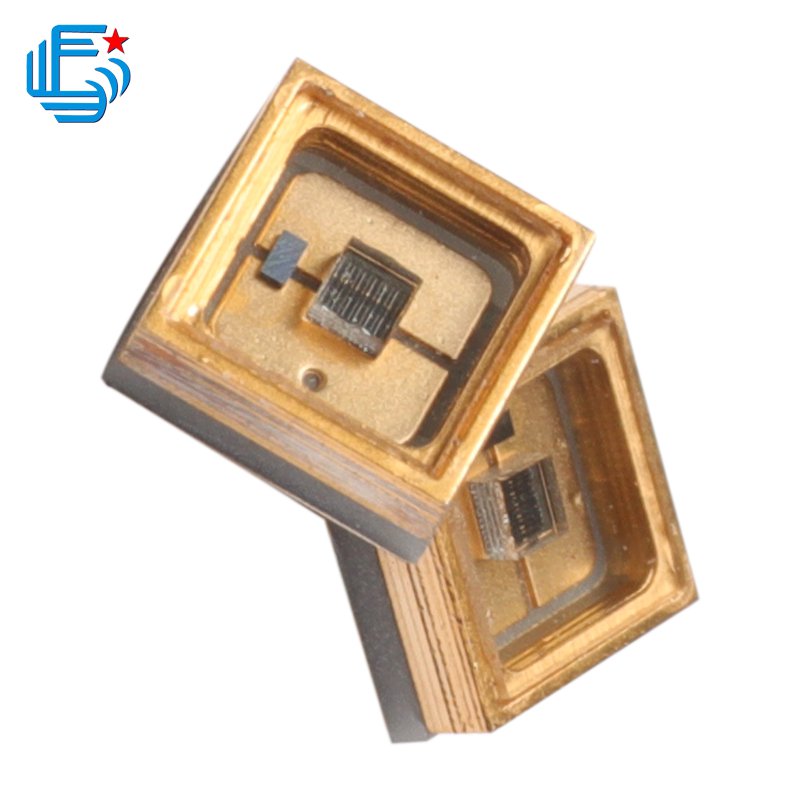

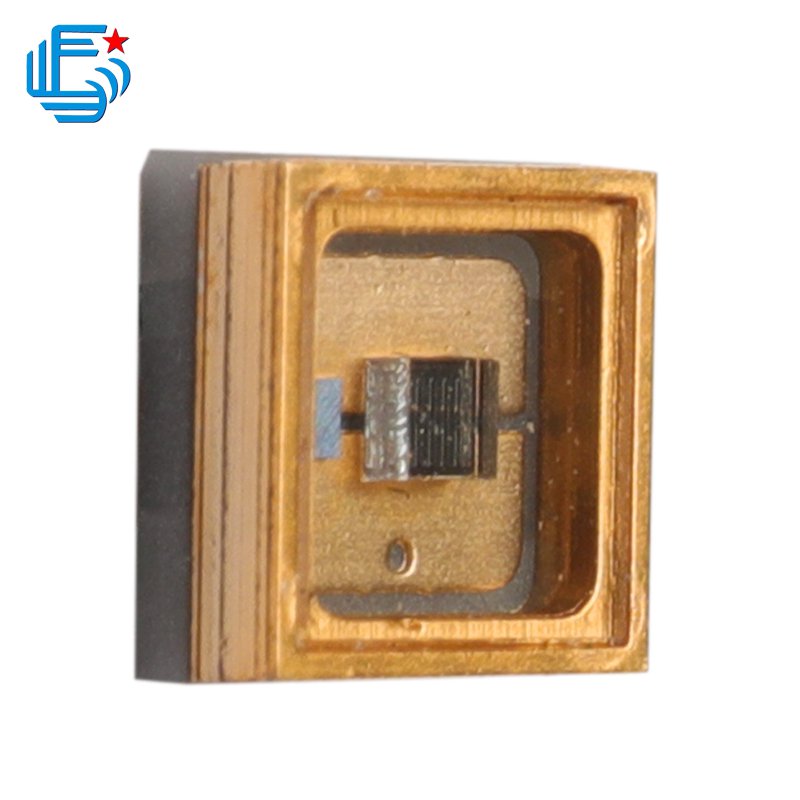

3535 Long life Large light output angle High radiation power 15~30 mW

Product Detail

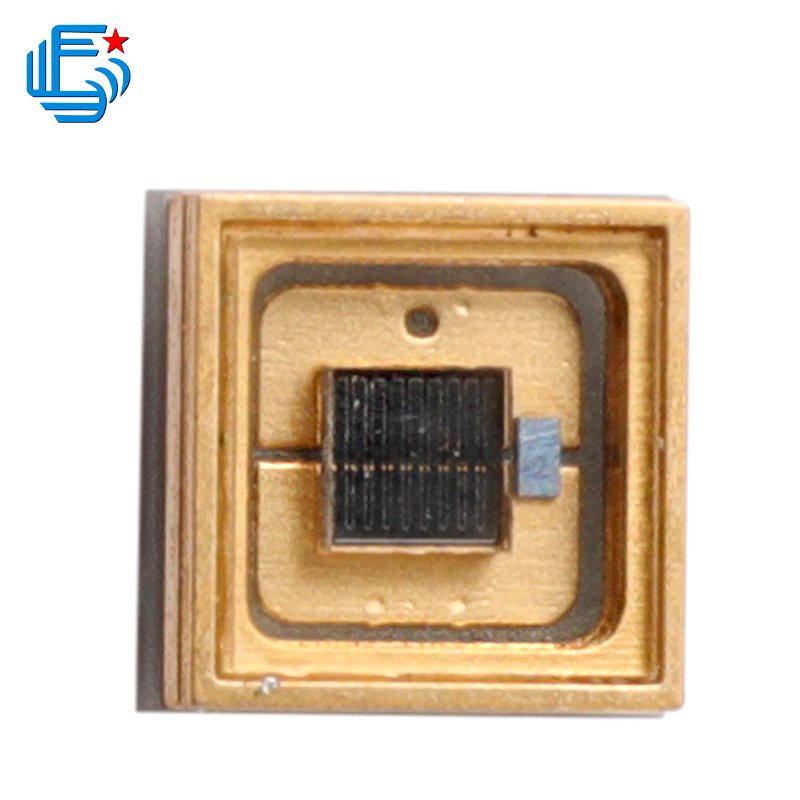

A single device contains two different kinds of chips, UVC and zener diode. Zener diode can protect UVC from ESD;

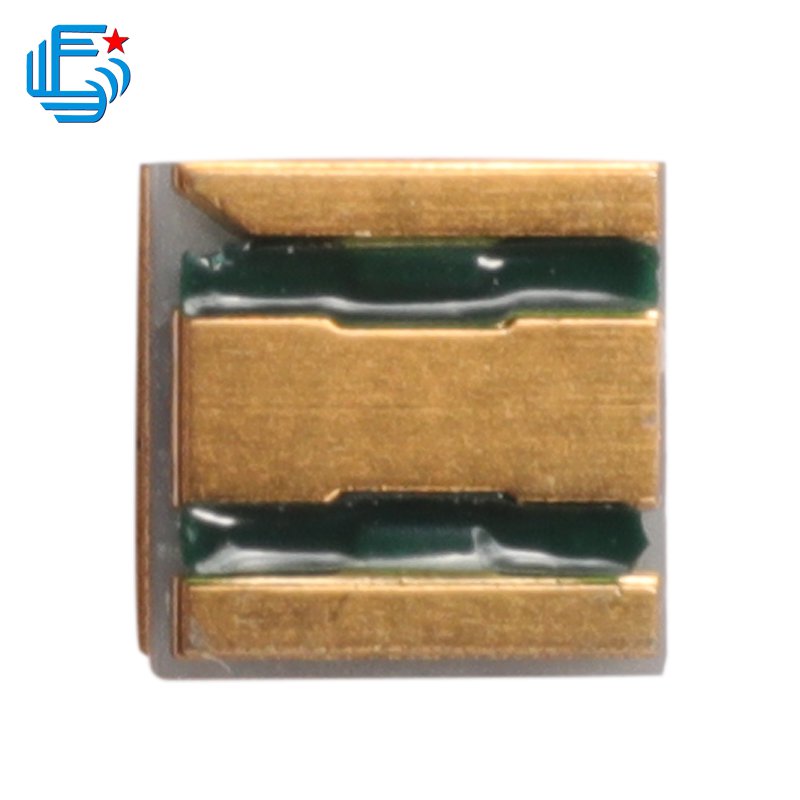

As shown in the figure above, ① is positive and ③ is negative; ② It's a thermal pad

Drawing unit: mm

Package: 3535 package, external dimension: 3.5 × three point five × 1.55 (L × W × H) [unit: mm]

Package material: AlN ceramic bracket, plane lens

Number of package chips: 1 pcs

Unless otherwise specified, the dimensional tolerance is ± 0.20 mm


Photoelectric characteristic parameters

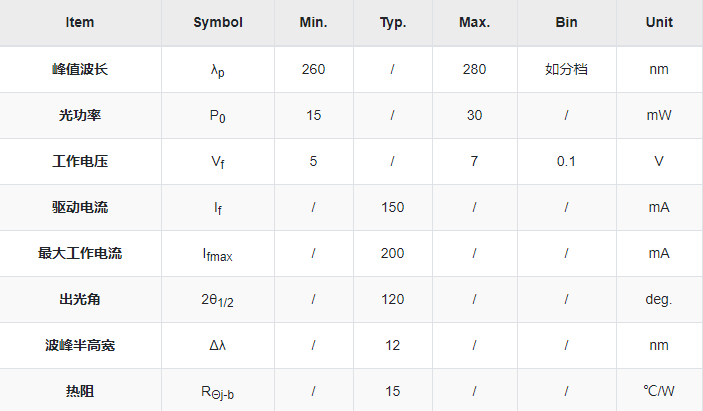

UVC photoelectric parameters and spec range (@ 150mA, Ta = 25 ℃, Rh = 30%)

These values are measured by a spectrum analyzer and an integrating sphere measurement system. The tolerances are as follows: working voltage (VF) ± 2%; Optical power (P0): 0 ± 10%; Peak wavelength( λ p): ± 3.0 nm

Although all LEDs are tested by our equipment, some values may be slightly different depending on the conditions of the test equipment.
